Bulk Head Connectors (Size 24)
Bulk Head Connectors (Size 24)
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

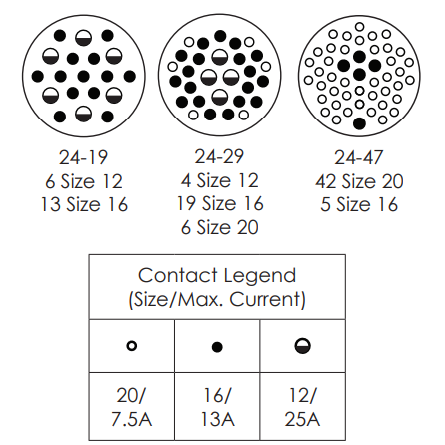

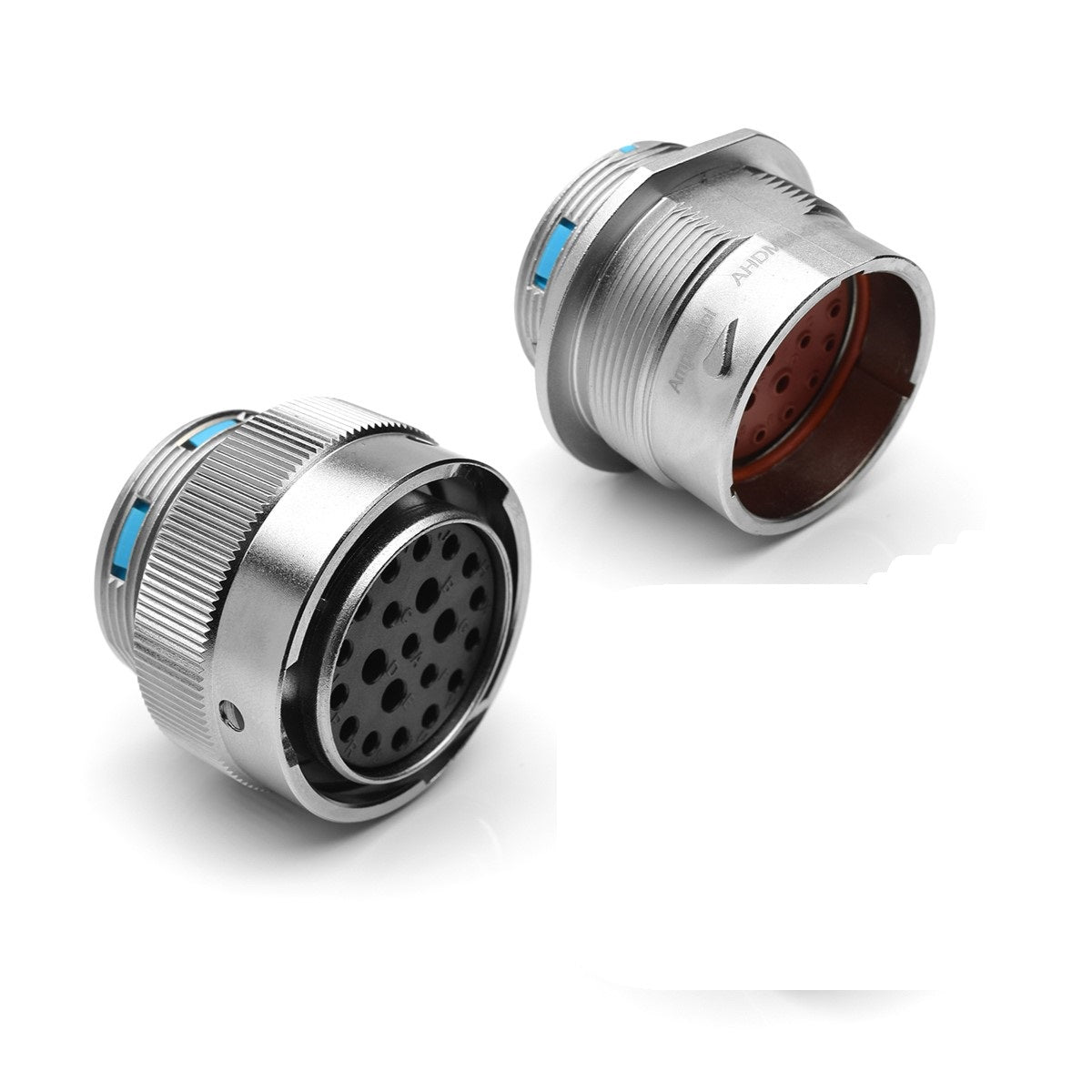

This bulkhead connector allows you to feed 47, 29 or 19 signal and/or power wires through a firewall or bulkhead for a clean install free of grommets, providing a clean base to build an engine and chassis harness. Terminals are included.
Perfect for use in high temperature and high vibration environments, boasting IP67/69K ingress protection against dust, water submersion and high pressure sprays. This is a -24 shell size version with reduced diameter rear seal for thin wall insulation wires (GXL, TXL, Tefzel, M22759/16, M22759/32)
Perfect for use in high temperature and high vibration environments, boasting IP67/69K ingress protection against dust, water submersion and high pressure sprays. This is a -24 shell size version with reduced diameter rear seal for thin wall insulation wires (GXL, TXL, Tefzel, M22759/16, M22759/32)
The -24 shell size can be either used with a straight or 90° rear back shell.
Be sure to check out the back shells that we offer in straight or 90 degrees.
Features
- 3 key-way bayonet design ensures proper mating of connectors
- High density signal and mixed power insert configurations
- Operating temperature range: -55°C to +125°C
- High strength impact resistant & lightweight thermoplastic housings
- Low insertion force stamped terminals offer improved manufacturing efficiencies
- Environmentally-sealed and engineered rapid and secure mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
- Sealing features consisting of durable high temperature silicone provide barrier from lubricating oils, hydraulic fluids and fossil fuels
- Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges
- Utilizes A Series™ standard contact system (Stamped & Formed or Machined)
Applications: Harsh Environment and Off-Road applications
