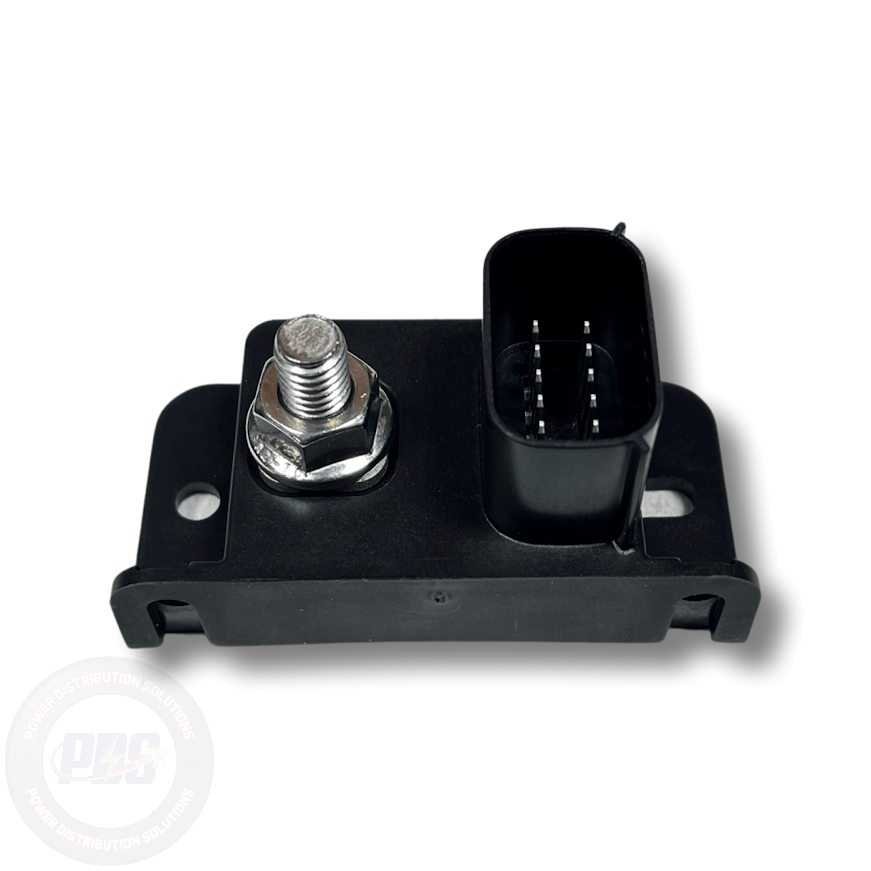

Sealed Grounding Block

Sealed Grounding Block

Regular price $29.25 USD
Regular price $32.00 USD Sale price $29.25 USD
Sale Sold out
Shipping calculated at checkout.
The Integrated Sealed Connector is a solution designed to protect low-amp electrical connections from moisture and corrosion. This compact device can be mounted vertically or horizontally, offering maximum installation flexibility. The Connector also eliminates the need for but splice connections and provides accessible pin-out testing ability through the removal of the mating connector. Furthermore, it replaces bus bars and terminal blocks with OEM quality sealed connections. Overall, this device is a reliable and efficient solution for protecting electrical connections while providing easy testing and installation options.

Features
  • Max Total Current (Amps): 200
  • M8 Main Stud
  • 14-16AWG Terminals
  • Max Terminal Current (Amps): 22
  • Cable Size for Max Current (AWG): 2/0
  • Max Cable Size (AWG): 4/0
  • Operating Temp Range (deg C): -40 / 125
  • Voltage Range (VDC): 8 - 36
